A VW T5 full respray is one of the most transformative upgrades you can make to your campervan. Whether your paint has faded, lacquer has failed, or rust has started creeping around arches and seams, a proper respray restores both appearance and long-term protection.
At Painting Campers, we recently completed a full exterior respray on a VW Transporter T5 that had lost its original shine. The owner wanted a factory-level finish, not a quick blow-over. Therefore, we stripped the vehicle back, corrected imperfections, treated corrosion properly and refinished it using professional automotive paint systems.
In this detailed guide, we explain what a true VW T5 full respray involves, why preparation matters more than colour choice, and how to ensure your van remains protected for years to come.
Why a VW T5 Full Respray Is Worth It
The VW T5 remains one of the most popular campervan bases in the UK. However, many examples are now over a decade old. As a result, paintwork deterioration is common.
Typical issues include:
- Clear coat peeling on roof and bonnet
- Stone chips along lower panels
- Rust forming around wheel arches
- Oxidised, flat paint finish
- Poor previous repair work
While some owners consider localised repairs, these rarely deliver uniform results. In contrast, a VW T5 full respray restores the entire vehicle consistently.
Moreover, fresh paint does more than improve aesthetics. It seals exposed metal, protects bodywork and increases resale appeal. Consequently, it becomes both a cosmetic and structural investment.
What a Professional VW T5 Full Respray Involves
Not all resprays are equal. Many low-cost options involve minimal preparation and heavy masking. However, proper refinishing demands precision and time.
At Painting Campers, our process includes:
1. Full Strip Down
We remove:
- Lights
- Handles
- Grilles
- Badges
- Seals where required
- Trim components
This approach prevents visible paint lines and ensures edges receive proper coverage.
2. Panel Preparation
Preparation defines the final finish. Therefore, we:
- Machine sand existing paintwork
- Feather out stone chips
- Strip corrosion to bare metal
- Apply rust treatment and epoxy primer
- Fill and level imperfections
- Block sand for smoothness
Every panel receives individual attention. As a result, the final surface remains flat and uniform.
3. Priming & Sealing
We apply high-build primer to create a consistent base. After curing, we block sand again. This stage removes microscopic imperfections and ensures paint adhesion.
4. Basecoat Application
Using professional spray equipment, we apply even coats of base colour. We maintain strict booth cleanliness and temperature control. Consequently, the finish remains consistent across panels.
5. 2K Lacquer Finish
We finish with a high-quality 2K clear coat. This provides:
- UV protection
- Chemical resistance
- Deep gloss
- Long-term durability
After curing, we machine polish to refine the finish and enhance clarity.
Why Preparation Matters More Than Colour
Many customers focus on colour choice. However, surface preparation determines longevity.
If rust remains untreated beneath paint, it will return. Similarly, insufficient sanding causes peeling. Therefore, a professional VW T5 full respray prioritises correction before colour.
We often see vans that were “cheaply resprayed” within two years. Common failures include:
- Orange peel texture
- Flaking lacquer
- Visible masking lines
- Rust reappearing
At Painting Campers, we eliminate these risks through methodical preparation.
Rust Repair During a VW T5 Full Respray
VW T5 models commonly suffer from:
- Rear arch corrosion

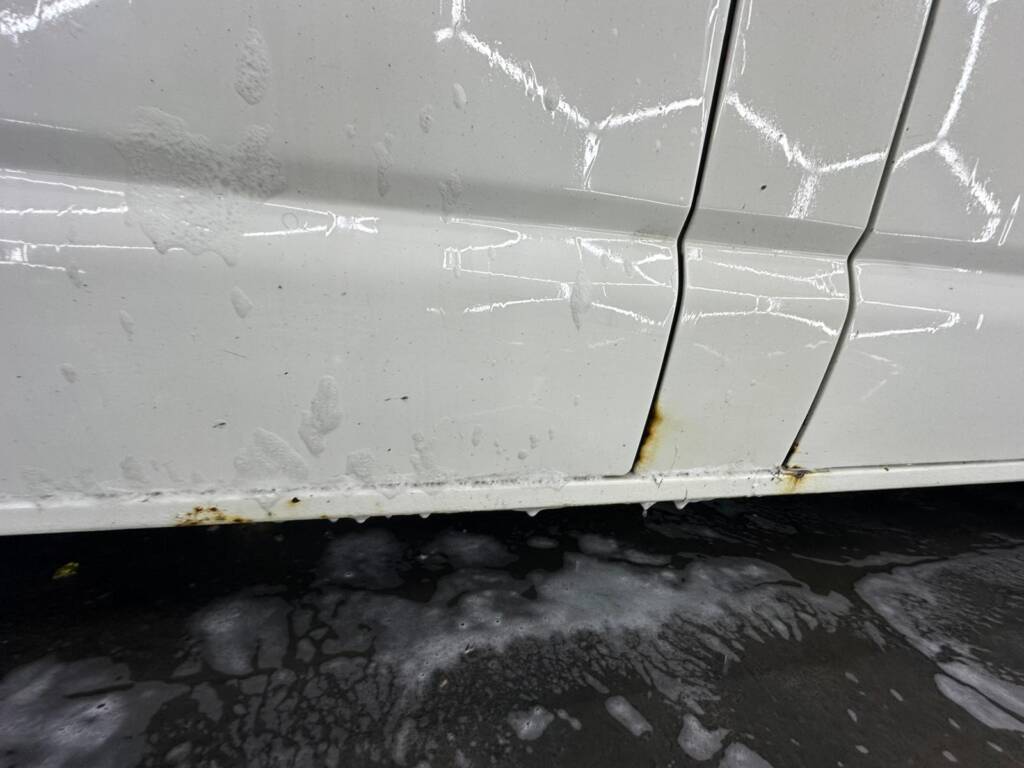

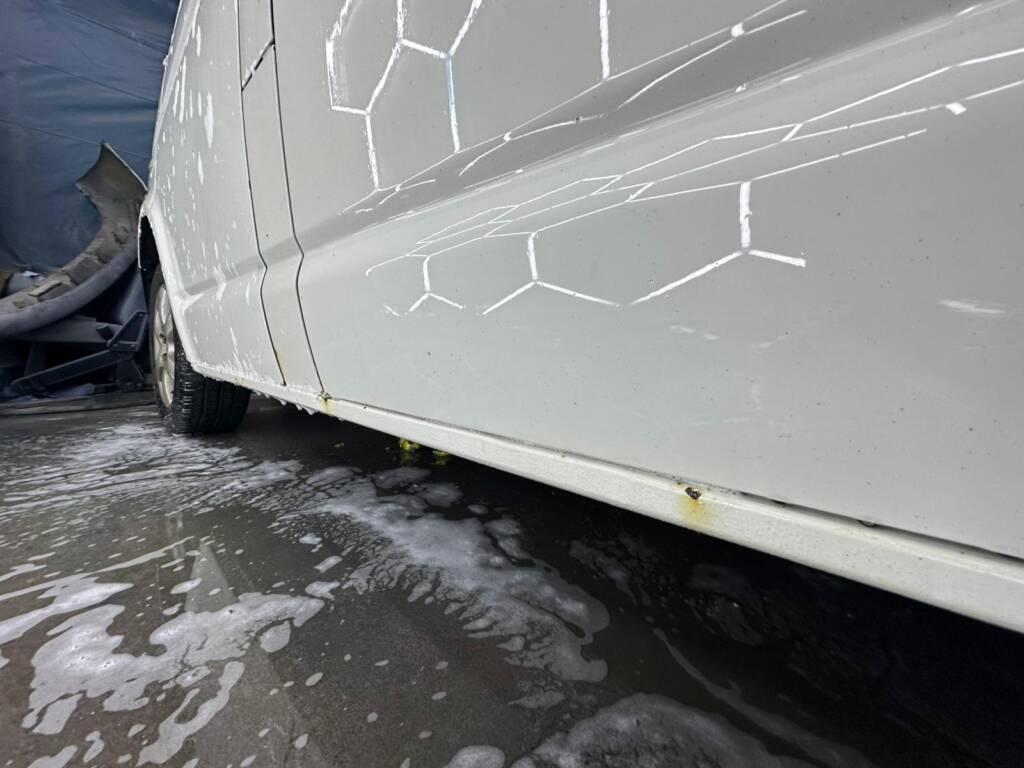

- Lower sill bubbling
- Tailgate edge rust
- Front wing corrosion

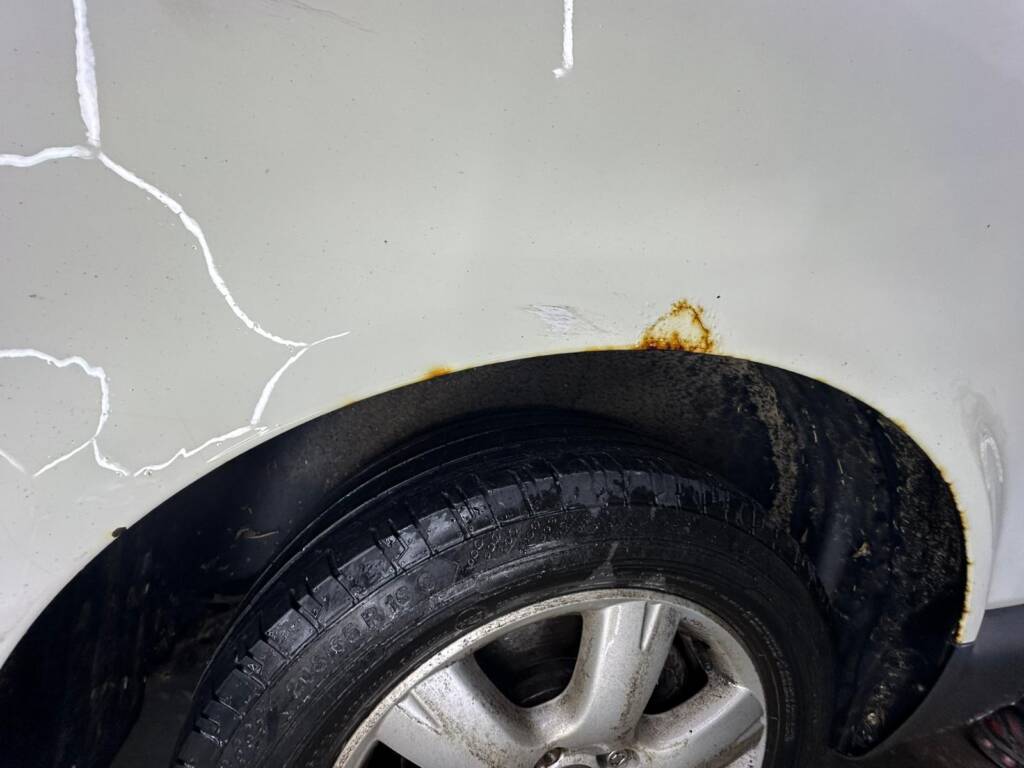

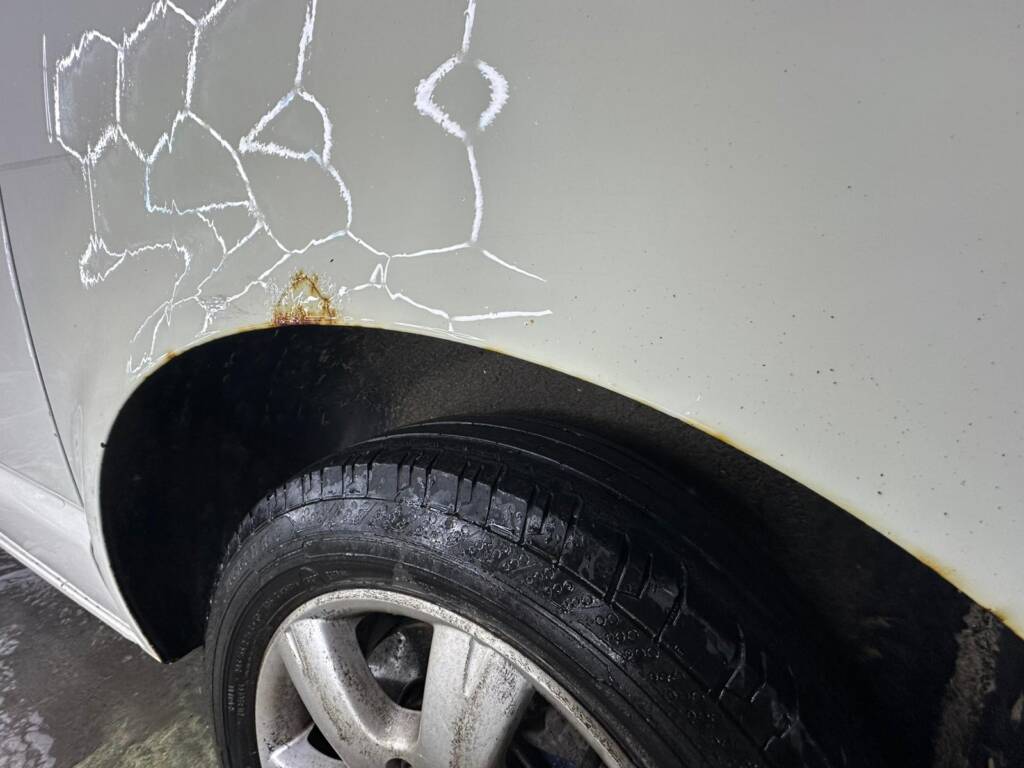

During this project, we identified early-stage arch corrosion. Therefore, we stripped affected areas to bare metal and applied corrosion inhibitor before priming.
Addressing rust during a VW T5 full respray prevents structural deterioration and preserves resale value.
Paint System Explained – Why We Use 2K Automotive Coatings
Modern automotive refinishing relies on high-quality two-component systems.
2K paint systems include:
- Basecoat (colour layer)
- Hardener-activated clear coat
This system provides superior durability compared to single-stage paints. Additionally, it offers better resistance against UV fade and environmental contaminants.
For campervans exposed to British weather year-round, this durability matters significantly.

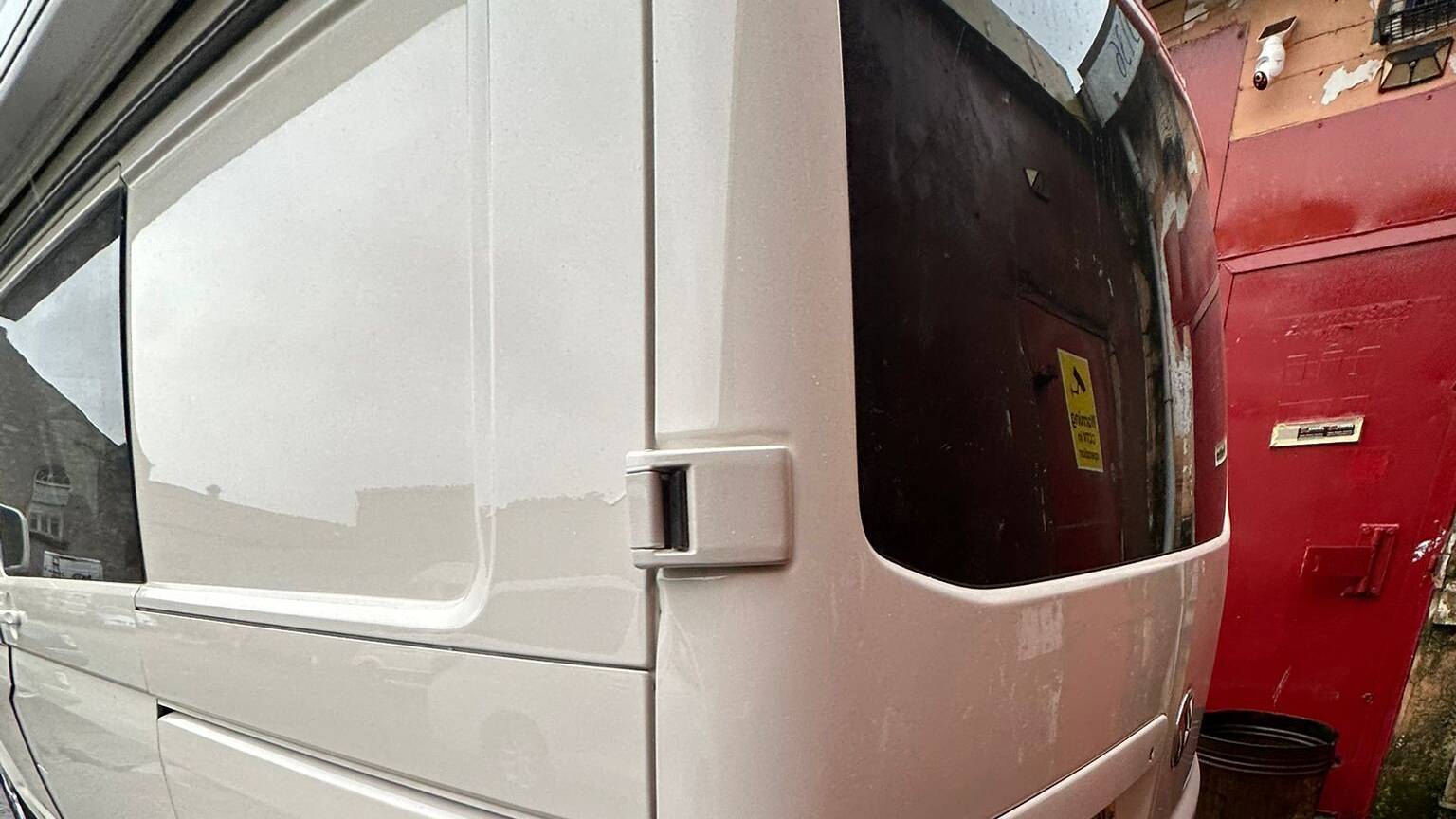

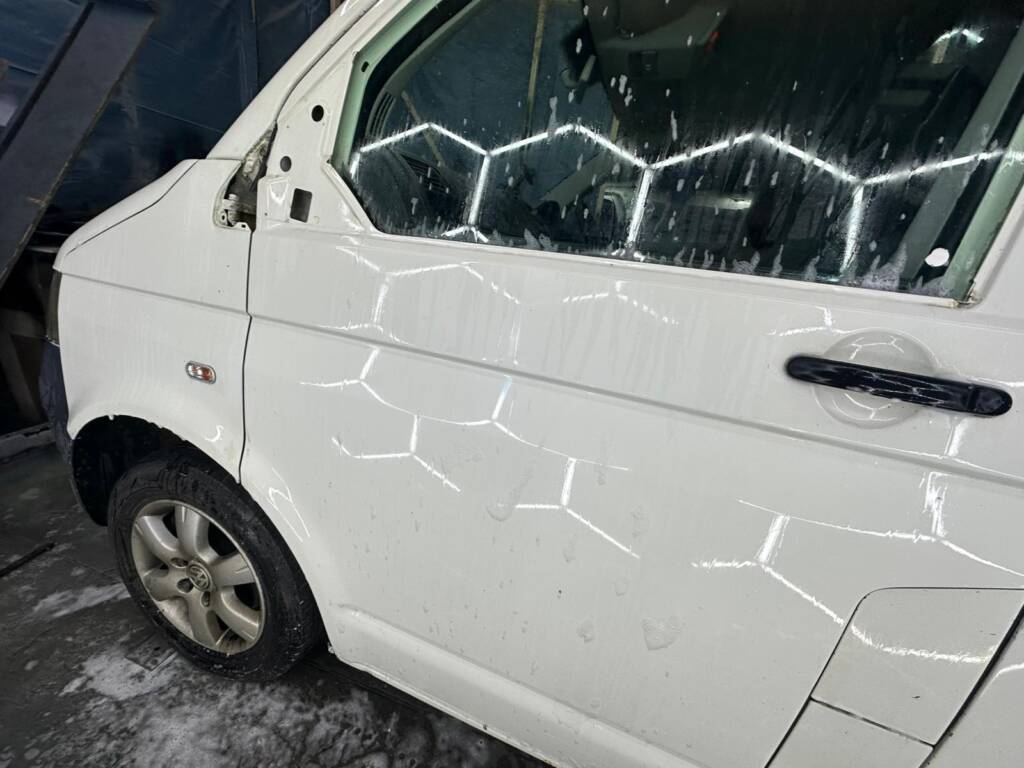

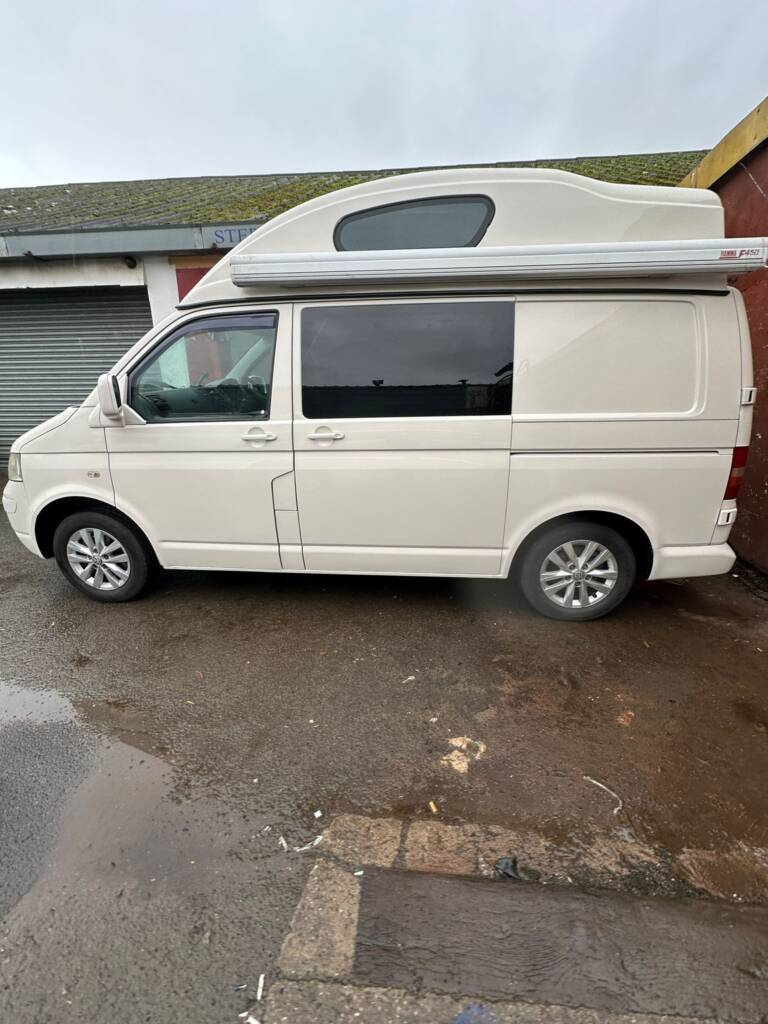

The Transformation: Before & After

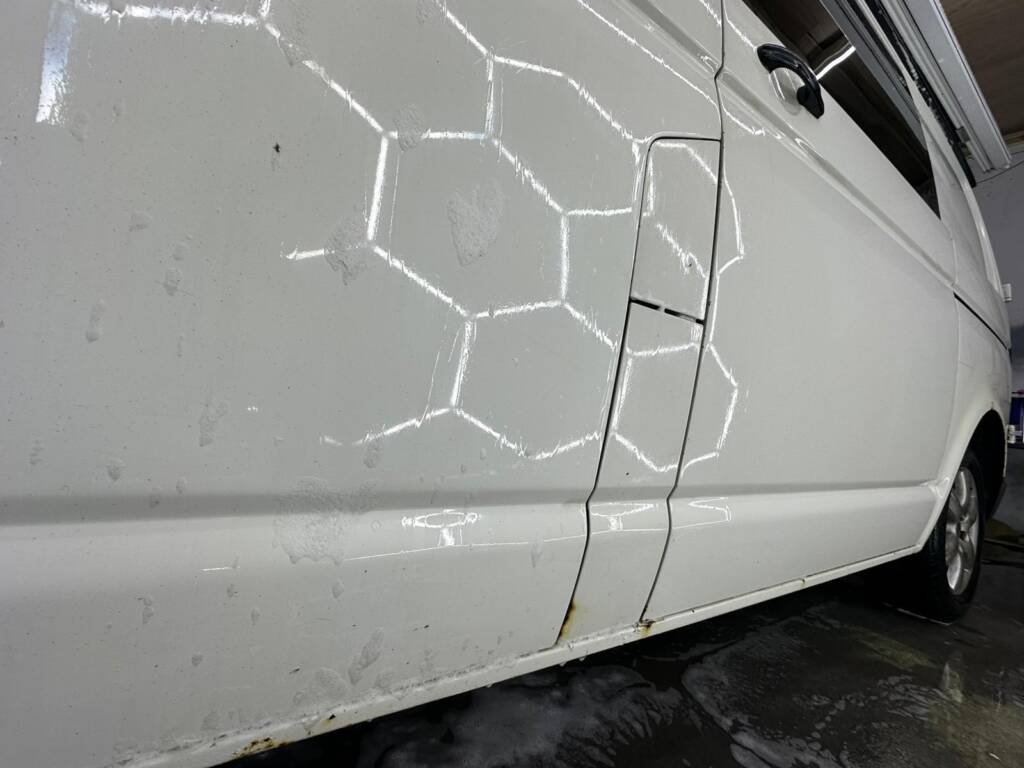

Before the respray, this VW T5 looked tired. The paint had dulled, and previous touch-ups stood out unevenly. Consequently, the van lacked presence.

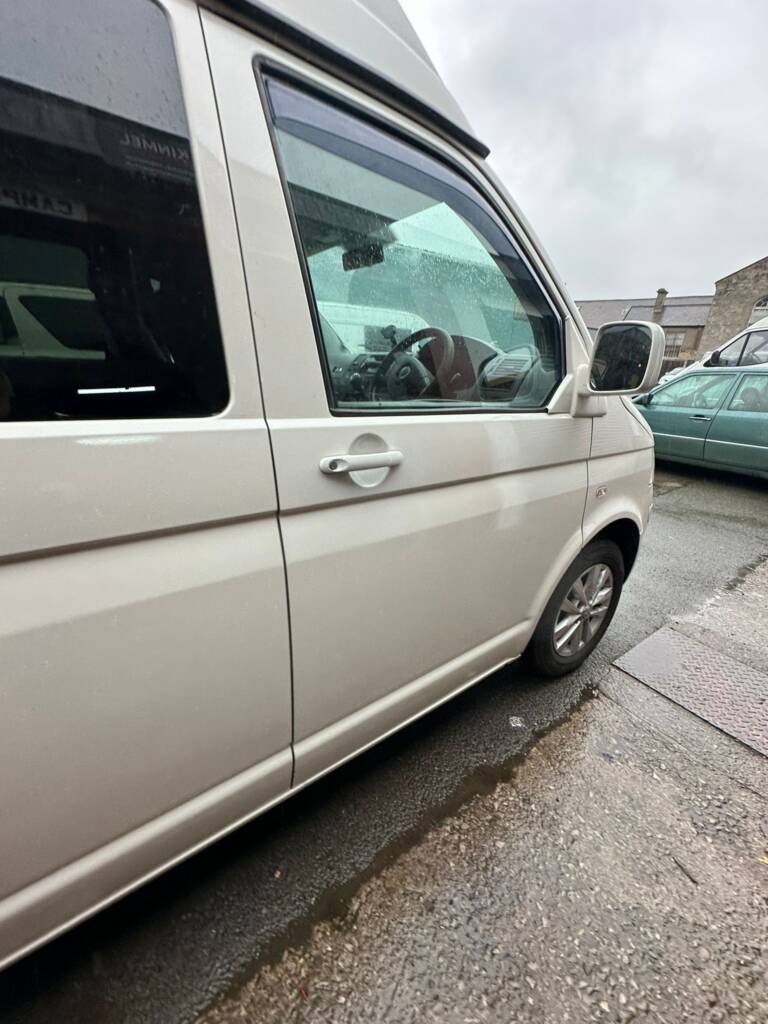

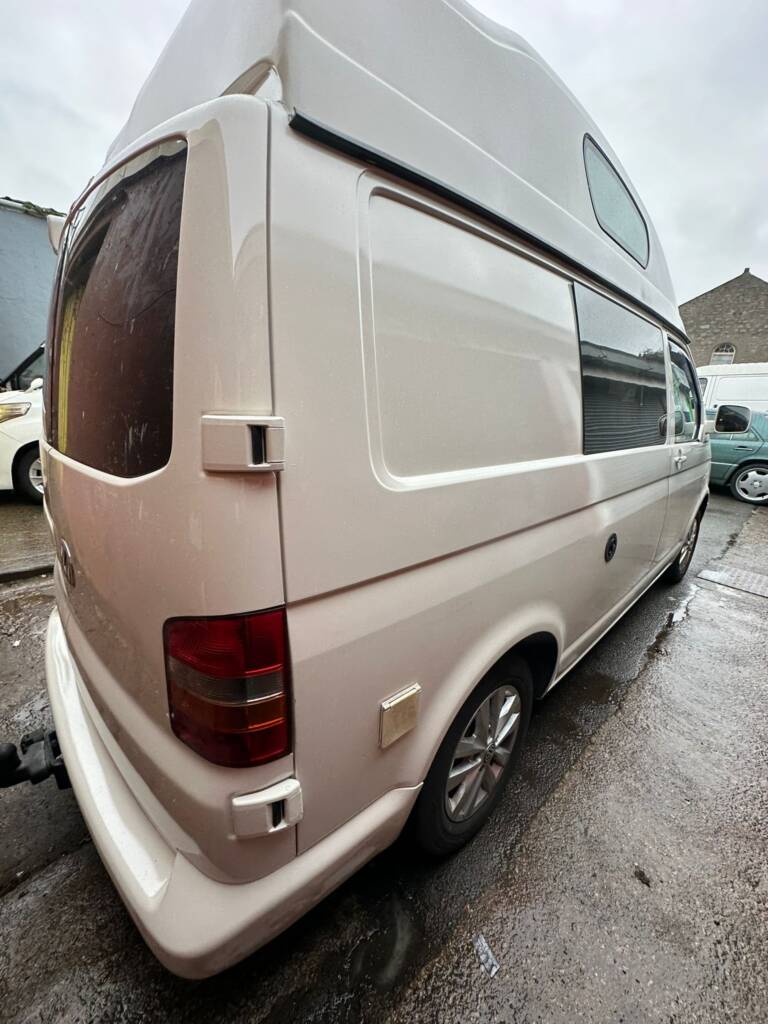

After the full process:
- The gloss returned to factory-level depth
- Panels matched seamlessly
- Arches looked sharp and clean
- The entire van felt newer
The owner immediately noticed the difference. More importantly, the vehicle now carries long-term protection beneath the surface.
How Long Does a VW T5 Full Respray Take?
Timeframes vary depending on condition. However, a proper job cannot be rushed.
Typical duration:
- Inspection & strip down: 1–2 days
- Preparation & rust repair: 3–5 days
- Priming & curing: 1–2 days
- Paint & lacquer application: 2 days
- Polishing & reassembly: 2–3 days
Therefore, expect approximately 10–14 working days for a high-quality VW T5 full respray.
VW T5 Full Respray Cost Considerations
When researching VW T5 full respray pricing, you will find significant variation across the UK. However, cost depends on:
- Rust level
- Colour change vs same colour
- Amount of trim removal
- Paint quality used
- Labour standards
Cheap resprays often skip removal and correction stages. Consequently, they appear cheaper upfront but fail prematurely.
At Painting Campers, we price transparently based on condition and scope. Our goal remains longevity, not shortcuts.
How to Maintain Your New Paintwork
After a VW T5 full respray, proper aftercare ensures maximum lifespan.
We recommend:
- Avoid washing for two weeks post-collection
- Use pH-neutral shampoo
- Avoid automatic car washes
- Apply ceramic coating after full cure
- Address stone chips promptly
Additionally, regular waxing or ceramic protection enhances gloss retention.
Why Choose Painting Campers?
Painting Campers focuses specifically on campervan refinishing. Therefore, we understand:
- Pop-top masking techniques
- Roof edge sealing
- Camper-specific trim removal
- Long-term touring durability requirements
We operate from a professional UK workshop using proper spray booth facilities. Moreover, we document work transparently and maintain high preparation standards.
Our reputation is built on quality, not speed.
Frequently Asked Questions
How long will a VW T5 full respray last?
With correct preparation and maintenance, a professional respray can last 10+ years.
Can you respray without removing windows?
While possible, we advise removal for best results. It prevents paint lines and hidden corrosion.
Is a full respray better than wrapping?
Yes. Paint offers better durability and long-term value. Wraps suit short-term aesthetic changes.
Can you repair rust during the process?
Absolutely. In fact, rust treatment forms part of a proper VW T5 full respray.
Ready to Transform Your VW T5?
If your camper looks tired or suffers from corrosion, now is the time to act. A VW T5 full respray restores pride, protects structure and enhances value.
Book a professional inspection today and let our team assess your vehicle properly.
Visit:
👉 https://paintingcampers.co.uk/
📩 Contact us via the website for a tailored quotation
Your camper deserves more than a quick paint job. It deserves a professional finish built to last.
